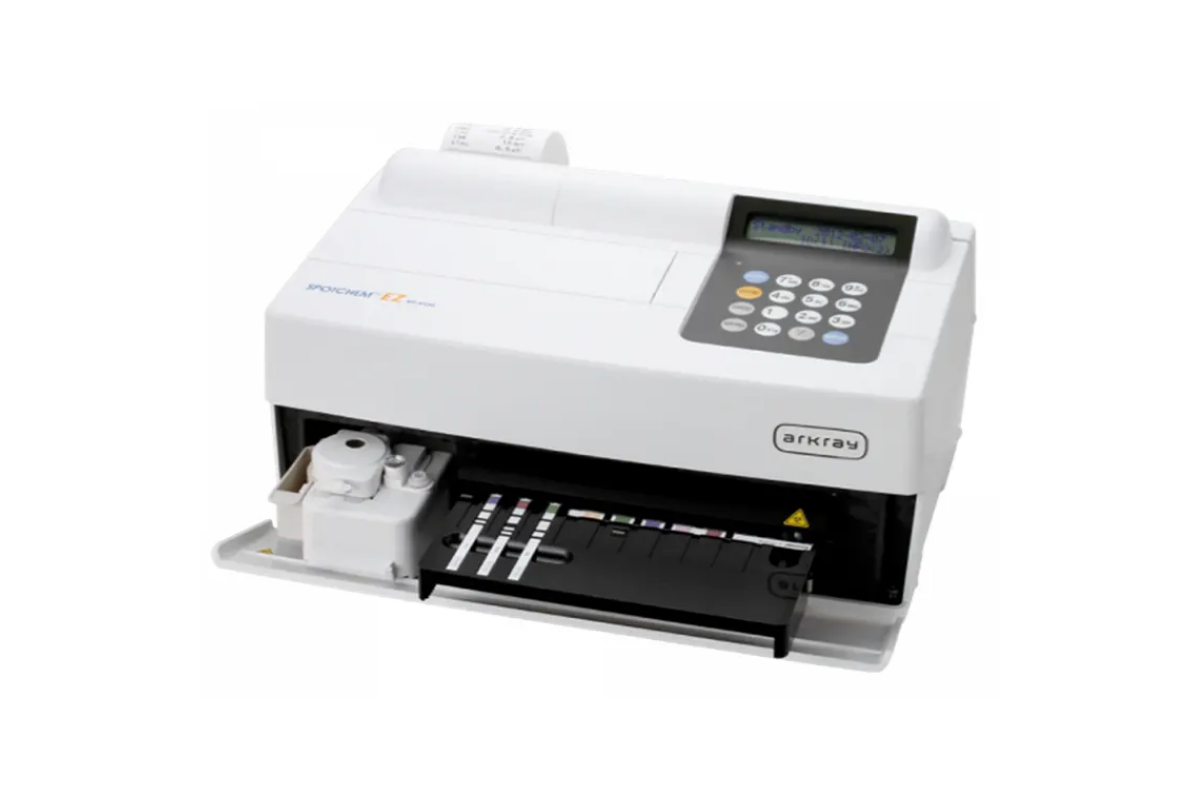

Arkray Automated analyzer for clinical chemistry
SPOTCHEM EZ SP-4430

Sample

Serum, Plasma, Whole blood

Measurement item

Glu, UA, T-Cho, TG, BUN, T-Bil, Ca, T-Pro, Alb, GOT,GPT, LDH, CPK, Amy, GGT, ALP, Cre2, HDL-C, FRA,IP, Mg (Total test items : 21)
A maximum of 9 items of simultaneous measurement is available

Measurement wavelength

5 wavelengths (405, 550, 575, 610 and 820 nm)

Measurement principle

Optical measurement of reflection intensity of reagent color reaction

Reagent Strip

SPOTCHEM II Reagent Strip

Processing speed

63 items per hour

Minimum sample volume

6 × the number of measurement items + 38 μL: serum, plasma

Sample consumption

4 - 6 μL (per 1 measurement item): serum, plasma

Sample container

Whole blood: exclusive whole blood sample tube, Centrifuge tube
Serum, plasma: exclusive serum sample tube

Light source

LED and Interference filter

Data storage volume

100 tests

Display

20 digits×2 lines LCD

Built-in Printer

36-character thermal printer (58 mm width)

External Output

RS-232C interface

Measurement conditions

Temperature: 10 - 30 °C
Humidity: 20 - 80 % RH (Non-condensing)

Power supply

AC100 - 120 V, 220 - 240 V
50/60Hz (AC adapter)

Dimensions

338 mm (W) ×203 mm (D) ×167 mm (H)

Weight

Approximately 5.4 kg

Power input

Max. 100VA
