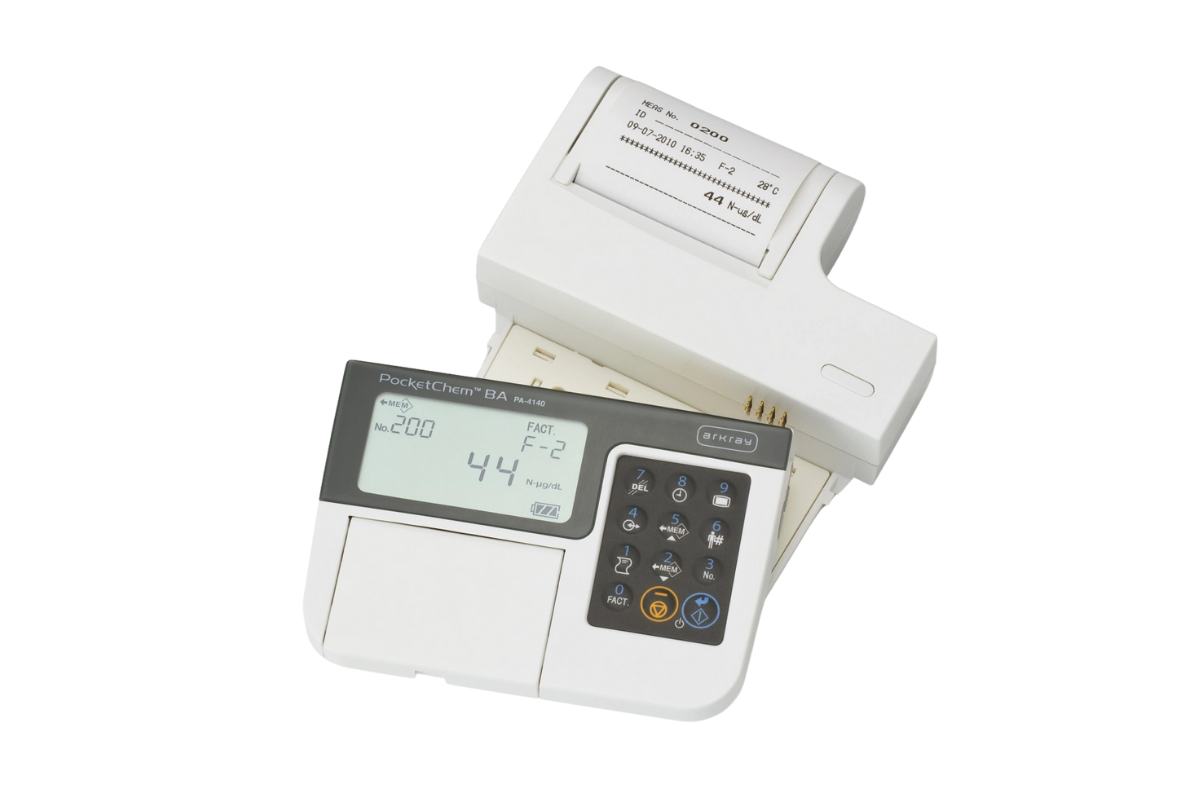

Arkray Blood Ammonia Meter PocketChem BA PA-4140

PocketChem BA is a palm size meter with the separate printer unit, and whole blood sample is available .

Printer specifications

Printer	Thermal line printer
Printer paper	High color development thermal paper (W 58 mm × 26 mm)
Dimensions	125 (W) × 133 (D) × 36 (H) mm
Weight	180 g (not including printer paper)
Power supply	AC adapter 7.5 VDC 3A
Power consumption	20 W

PA-4140 specifications

Sample	Whole blood
Test strip	AMMONIA TEST KIT II
Measurement item	Blood ammonia concentration
Measurement range	10 to 400 N - μg / dL
Measurement principle	Test strip, Single wavelength reflectance method
Measurement wavelength	Single wavelength LED (635 nm)
Sample supply method	Dropping with pipette
Reaction time	Approx. 3 minutes and 20 seconds per test
Warm-up time	Max.10 seconds
Measurement types	Normal measurement, continuous measurement and check measurement
Display	LCD
Memory capacity	Test results for 50 samples
External output	RS-232 C compliant
Thermal compensation	Automatic compensation using a built-in temperature sensor
Operating environment	Temperature: 10-35 °C ; Humidity : 25 - 85 % RH
Dimensions	Instrument : 124 (W) × 85 (D) × 38 (H) mm
Weight	Approx. 150 g (not including batteries)
Power supply	Instrument: Two AA batteries or AC adapter 7.5 VDC 3A
Power consumption	Battery power : 0.15 W (AC power : 4 W)
