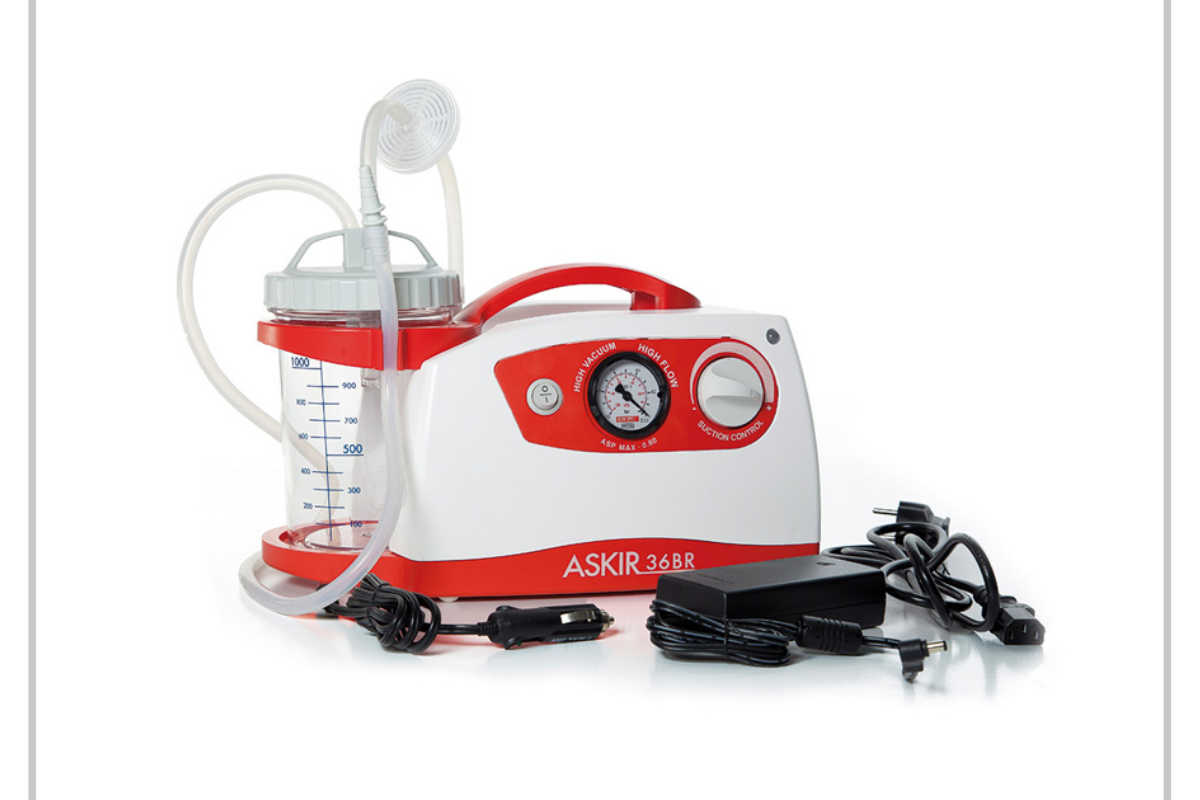

ASKIR 36BR Portable Surgical Suction Unit

Askir 36BR is a desk-type electrical suction unit for the aspiration of body liquids, oral, nasal and tracheal aspiration in adult or children. The appliance is designed for easy transport and almost continuous use. The unit is operated by means of an electronic power management system, also monitoring the internal battery operation and status.

A LED system positioned on the front panel indicated appliance start-up and battery charge status. The unit is equipped with suction regulator on the front panel and polycarbonate autoclavable jar  complete with overflow valve. Thanks to these characteristics and to its functions, this device is  particularly suitable for different applications: utilization in hospital wards, for tracheotomy, for suction of body liquids and for minor surgery.

SPECIFICATIONS:

• MODEL: ASKIR 36BR

• Overall Dimensions: 350mm(L) x 210mm(H) x 180mm(W)

• Capacity: 36l per minute

• Unit Weight: 4.39kg

• Power Feeding:

  • 14v -4A with AC/DC Universal Adaper (100-240V ~

    50/60Hz – 100VA)

  • Internal Rechargeable Pb Battery 12v – 4A)

  • Car Adapter (12v – 4A)

• Power Consumption: 4A

• Maximum Vacuum: -0.80BAR, -80kPA, -600mmHG

• Noise Level: 65,5db (with jar / 68,5dB (without jar)

• Standard Accessories:  

  • 1l autoclavable jar (max temp. 120°C)

  • Cover with safety float

  • Silicone tubes 8 x 14mm

  • Conical Connector 10-11-12mm

  • AC/DC Universal Adapter 100-240V ~ 50/60Hz

  • Power Cord with Shuko plug for universal adapter

  • Internal Rechargeable battery

  • Antibacterial Filter

• Quality Standard: CE
