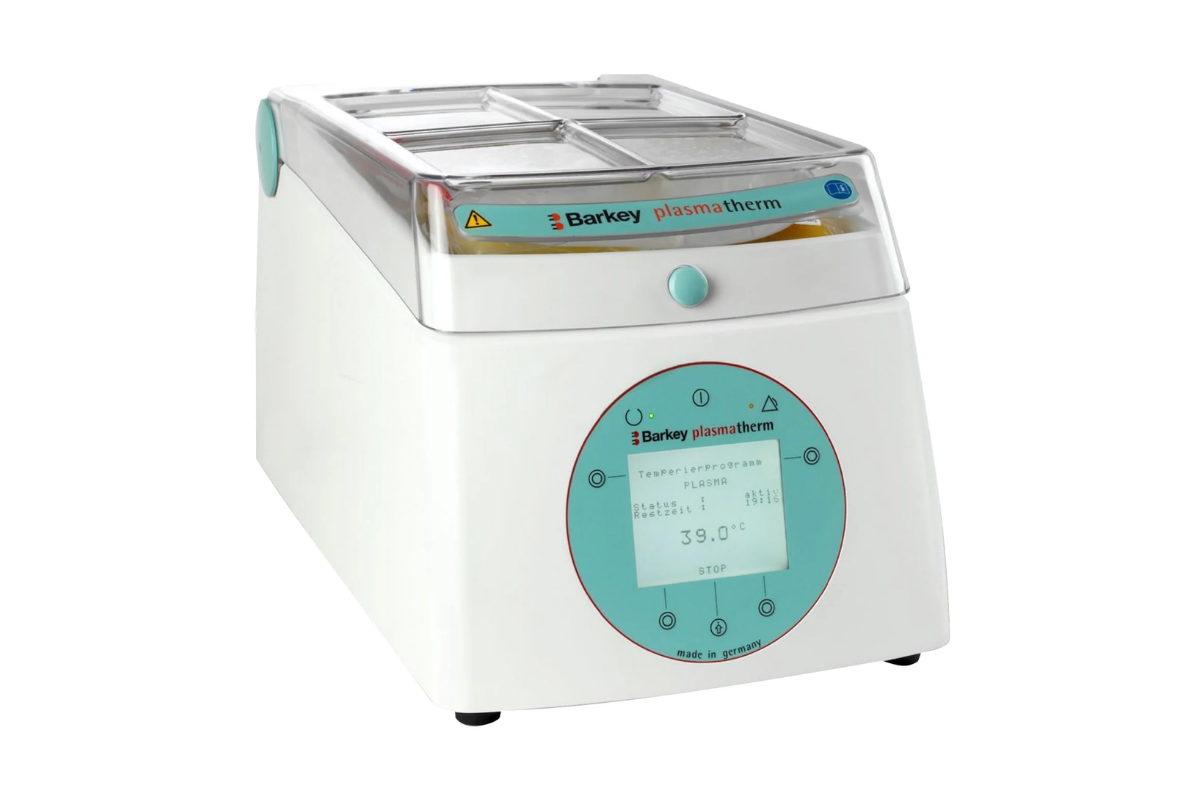

Barkey Plasmatherm – Blood and Plasma Thawing & Warming System

The Barkey Plasmatherm is a versatile, high-capacity dry thawing and warming device for use in transfusion medicine and clinical laboratories. Designed to safely handle blood products—including FFP (fresh frozen plasma), erythrocyte concentrates (EC), cryopreserved cells, and infusion solutions—this unit provides precise temperature control, hygienic operation, and electronic documentation options. It is ideal for hospitals, blood banks, and stem cell labs that demand safe, fast, and contamination-free warming.

Key Benefits:

Dry thawing technology: No water contact means no cross-contamination or infection risk.
Capacity: Thaws up to 4 plasma bags simultaneously (or up to 8 in emergencies).
Preset shortcuts: Plasma, blood, HPC (hematopoietic progenitor cells), and custom user programs.
User-friendly interface: Large display with plain text and intuitive controls.
Leak detection sensors: Dual sensors provide added protection against fluid leakage.
Minimal maintenance: Only one annual water change required.
Custom fit: Cushioned holders conform to bag shape for safe and even thawing.

Technology & Safety Features:

Feature	Description
Warming Range	+37°C to +45°C (US model fixed at +37°C)
Thawing Capacity	4 bags standard, up to 8 in emergency
Technology	Dry warming chamber with closed heating system
Interface Options	Barcode reader, log printer, Ethernet port
Control & Monitoring	Visual + acoustic alerts for cycle end and system errors
Leak Detection	2 independent leak sensors for enhanced safety
Display	Large, readable screen with real-time progress updates
Temperature Accuracy	Electronically regulated; overtemperature alarms (mechanical + electronic)
Cleaning & Hygiene	Smooth, corrosion-resistant surfaces; wipe-disinfectable

Technical Specifications:

Specification	Value
Power Supply	220–240V / 100–120V, 50/60 Hz
Set Temperature Range	+37°C to +45°C
Water Reservoir Capacity	9 liters
Device Dimensions (WxDxH)	340 × 600 × 320 mm
Weight (empty)	18 kg
Safety Class	I (Protective earthing)
Ingress Protection	Dry system (no liquid exposure)
Certification	CE 0123, MDD Class IIa
Quality System Compliance	DIN EN ISO 13485

Optional Accessories:

Accessory	Description
Electronic Documentation	Via Ethernet, enables data archiving
Barcode Scanner	Patient/product tracking integration
Log Printer	Physical printout of thawing/warming sessions
