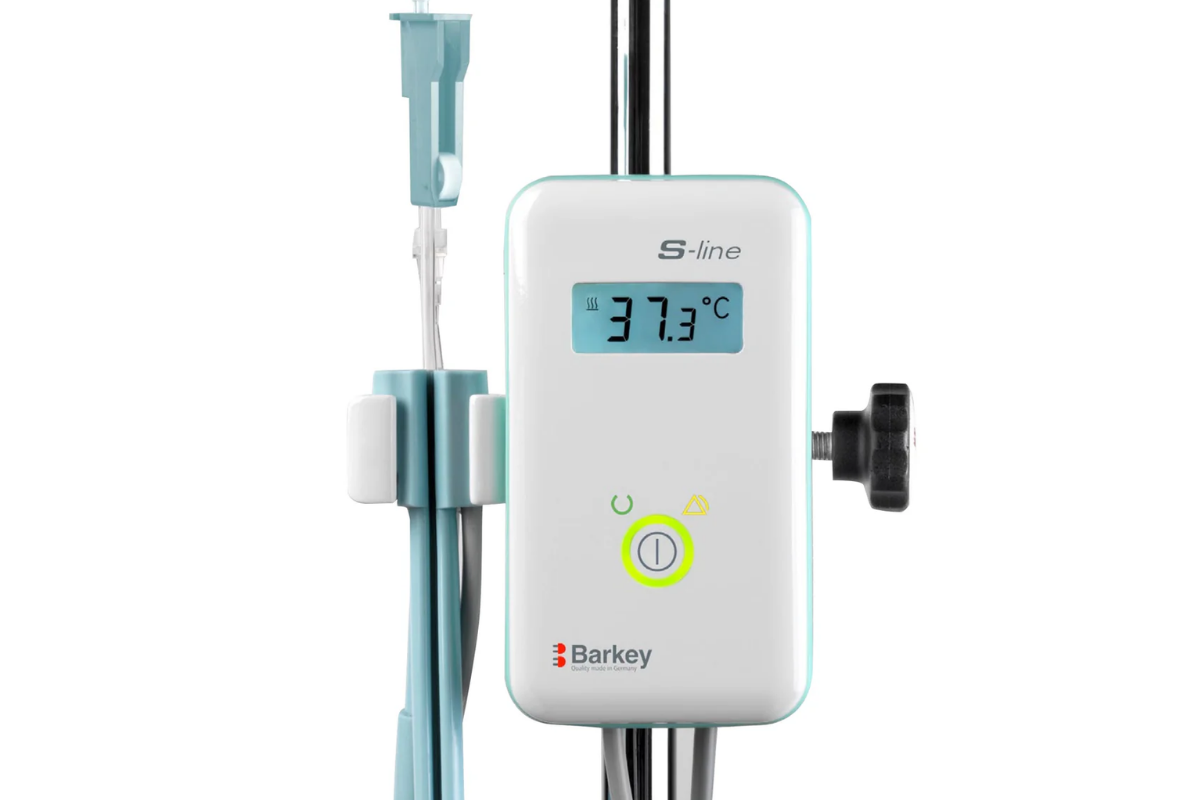

Barkey S-line Infusion Line Warmer
The Barkey S-line is a high-precision, reliable fluid warmer designed for pre-warming infusion fluids before administration to patients. By maintaining the warming section at a constant +39°C, it ensures thermally regulated fluid delivery during clinical procedures, which is essential for preventing hypothermia in surgical, emergency, or ICU settings. This compact, user-friendly device integrates seamlessly into existing medical workflows, particularly in hospital, surgical, and emergency care environments.
Key Functions:
Warms infusion fluids via standard Ø5 mm lines
Fixed warming temperature of +39°C
Integrated safety and alarm system with:
Yellow warning ring and acoustic alert for malfunctions
Independent overtemperature protection at 43°C ± 1°C
Intuitive touch panel interface with luminous status ring and digital temperature display
Fast warm-up time (from 20°C to 39°C in approx. 2 minutes)
Technology Summary:
Feature | Details |
|---|---|
Temperature Range | Factory-set at +39°C (±2.0°C control precision) |
Overtemperature Cutoff | 43°C ± 1.0°C |
Warming Section | Accepts standard infusion lines (Ø5mm, length 1.5m) |
Warm-up Time | Approx. 2 minutes (from 20°C to 39°C) |
Power Supply | 100–240V AC, 50–60Hz |
Power Consumption | Max 75W (1.0A at 230V, 1.8A at 115V) |
Device Operation Mode | Continuous |
Moisture Protection | IPX2 (drip-proof) |
Safety Classification | Class I, BF Type, defibrillation-protected |
CE Certification | CE 0123 (MDD Class IIa device) |
Control Unit Size | 90 × 60 × 160 mm |
Weight | Approx. 1.3 kg |
Environmental Use Conditions | +10°C to +40°C, 30–75% RH |
Storage Conditions | –20°C to +70°C, 30–90% RH |
Air Pressure Tolerance | 700–1060 hPa |
User Interface and Safety Features:
Component | Function |
|---|---|
Touch Panel | Powers the unit on/off |
Luminous Ring | Visual status: Green (ready), Yellow (fault with alarm) |
Digital Display | Real-time display of heating section temperature |
Audible Alarm | Activates with faults or overtemperature conditions |
Independent Cutoff | Shuts off heater if overtemperature occurs |
Manufacturer Information:
Manufacturer: Barkey GmbH & Co. KG
Address: Gewerbestrasse 8, 33818 Leopoldshöhe, Germany
Contact: +49(0)5202-9801-0 | info@barkey.de
Article Number: 213.10285
