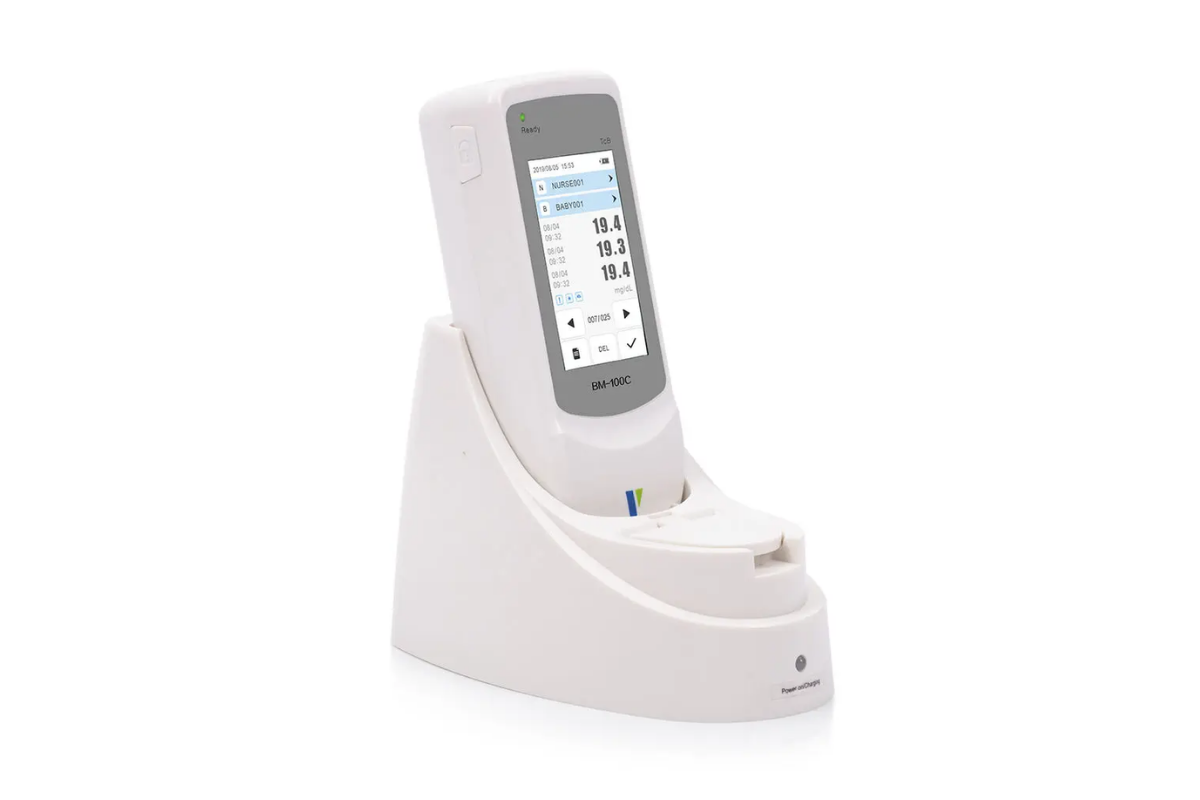

BM-100 Series Transcutaneous Jaundice Detector

The BM-100 Series Transcutaneous Jaundice Detector is a non-invasive medical device designed to measure bilirubin levels in newborns. It is especially useful before, during, and after phototherapy. This portable and accurate tool is ideal for neonatal and pediatric care, providing real-time assessment of jaundice severity in a quick, safe, and hygienic manner—without the need for blood samples.

Intended Use:

Primary Users: Neonatology and pediatric departments, maternity and child care centers, NICUs, baby wards, delivery rooms.
Patient Profile: Neonates (newborns)
Environment: Licensed medical institutions

Model Comparison:

Model	USB Data Transmission	Barcode Scanner
BM-100A	No	No
BM-100B	Yes	No
BM-100C	Yes	Yes

Device Structure:

Host Unit:
- Optical probe (350–700nm, peak at 550nm)
- Touchscreen display
- Battery-powered
- Barcode scanner (BM-100C only)
- Measurement initiation via probe contact
- Screen brightness control (5 levels), keystroke sound toggle
- Display of measurement results, historical data, low battery alert, and error messages
- Data export function (BM-100B/C) via USB as .txt
Base Unit:
- Charging contact points
- Indicator light
- Data transmission interface
- Built-in inspection screen for accuracy validation

Technical Specifications:

Parameter	Value
Classification	Class II (electric shock protection), Type BF
Display Range	≥ 25.0 mg/dL (425 µmol/L)
Accuracy	±1.5 mg/dL (≤25.5 µmol/L)
Repeatability	≤3%
Pulse Duration	3 ms
Pulse Interval	> 2 s
Host Size & Weight	60 × 46 × 175 mm, <250g
Base Size & Weight	86 × 155 × 106 mm, 250g
Light Source	Xenon flash lamp, ≥150,000 flashes
Power Supply (Base)	8.4V⎓1A; Lithium battery 7.4V internal
Input Power (AC)	100–240V, 50/60Hz, 30VA
Environmental Operation Range	5–40°C, <90% RH, 700–1060 hPa
Storage Conditions	-20–55°C, <90% RH
Altitude Limit	<3000m
Ingress Protection	IPX0
Expected Service Life	6 years
Optical Radiation Safety	IEC 60601-2-57 compliant, Exempt Group for UV and IR hazards

Notable Features:

Average of 1–5 measurements can be set for higher accuracy.
Switchable units: mg/dL ↔ µmol/L
Scan nurse and baby ID (BM-100C)
Adjustable screen saver (1 or 5 mins)
Historical data includes timestamps, user ID, and treatment markers
Pre-calibrated inspection screens for self-check functionality
