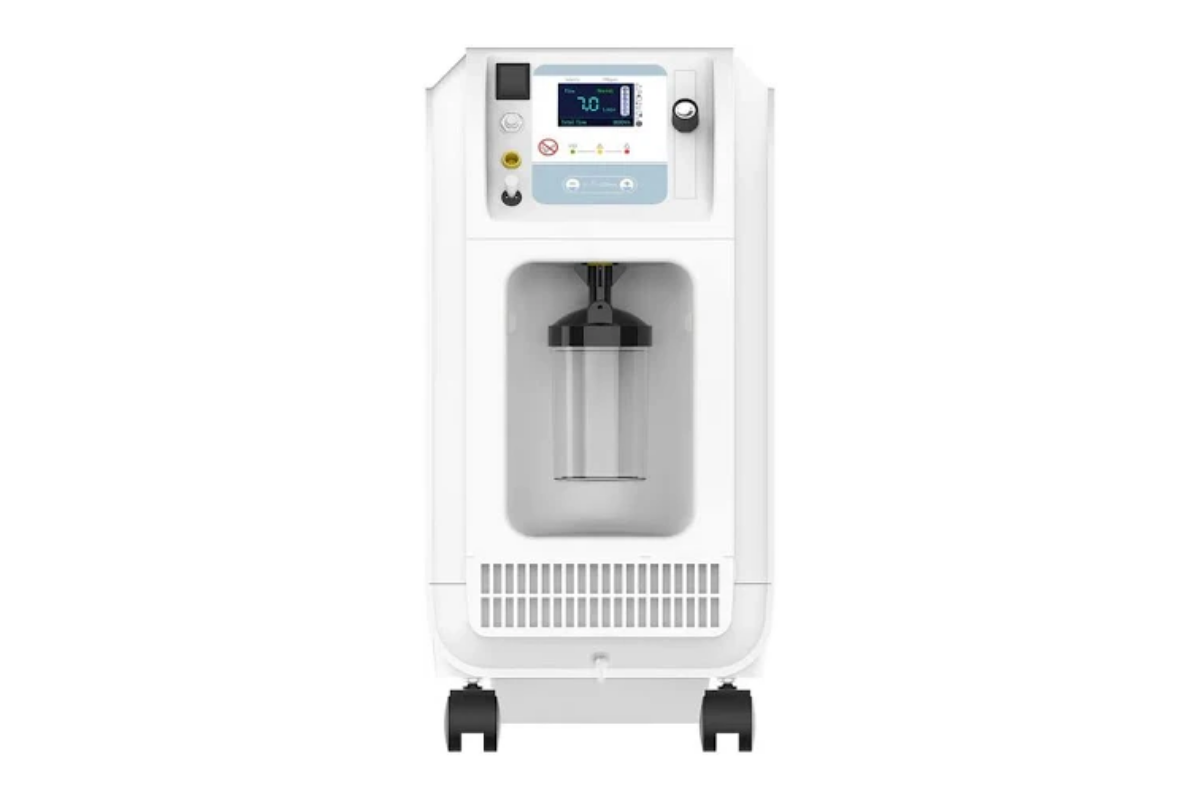

Contec 7L Oxygen Concentrator

The Contec 7L Oxygen Concentrator is a high-performance, portable medical device designed to deliver concentrated oxygen to patients requiring respiratory support. Utilizing advanced PSA (Pressure Swing Adsorption) technology and a high-quality molecular sieve, it extracts medical-grade oxygen from ambient air with reliable accuracy. Ideal for use in hospitals, clinics, home care, and emergency settings.

Its compact size, low noise level, and mobility features make it easy to use and transport, while multiple safety features ensure reliable operation and patient peace of mind.

Key Features:

PSA technology for oxygen extraction
Maximum flow rate: 7 L/min
Built-in filters and flow meter
Low noise, high safety, and easy to operate
Real-time SpO₂ and pulse rate monitoring
Multiple alarms: high/low flow, temperature, power failure, overpressure
Clear LCD display and user-friendly interface
Humidifier bottle included

Technical Specifications:

Specification	Details
Flow Rate	0.5 – 7.0 L/min
Oxygen Concentration	93% ± 3%
Max Flowrate (Recommended)	7 L/min
Outlet Pressure	20kPa – 50kPa
Noise Level	≤60 dB(A)
Power Requirements	AC220V ±10%, 50Hz ±1Hz
Rated Power	≤700VA
Pulse Rate Measurement Range	30 – 250 bpm
SpO₂ Measurement Range	0 – 100%
Dimensions (L×W×H)	584 × 260 × 530 mm
Weight	28 kg
Operating Temperature	10°C – 40°C
Storage Temperature	-20°C – 60°C
Atmospheric Pressure	86 – 106 kPa
Protection Rating	IP21 (ingress), Class II equipment
