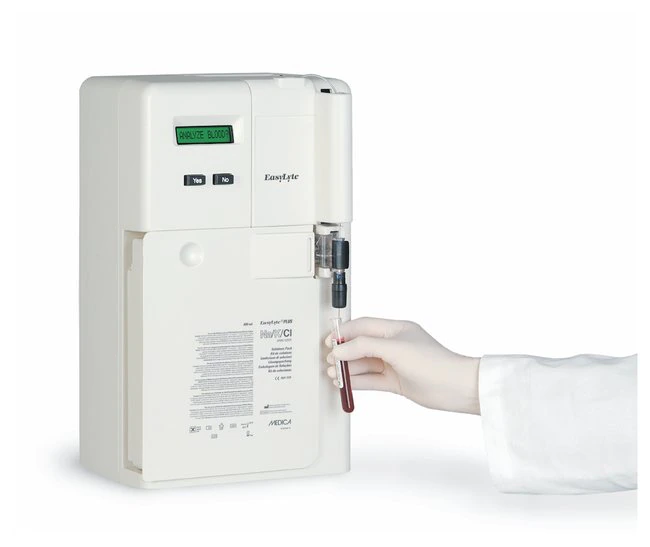

EasyLyte Electrolyte Analyzer

Medica Corporation’s EasyLyte® analyzer is a completely automated, microprocessor-controlled electrolyte system that uses ISE (Ion Selective Electrode) technology to make electrolyte measurements. The EasyLyte product line measures combinations of Na+, K+, Cl–, Li+, Ca++, and pH in whole blood, serum, plasma, or urine.

EasyLyte incorporates state-of-the-art electronics and an innovative ergonomic design that differentiates it significantly from competitors. The analyzer also stores quality-control data that is easily accessible. Patient histories are immediately retrievable for evaluation.

EasyLyte analyzers combine simple yes/no prompted operation, low maintenance, and high reliability into one economical design.

Over 40,000 EasyLyte analyzers have been sold.

Available Models

• EasyLyte – Na⁺ / K⁺

• EasyLytePLUS – Na⁺ / K⁺ / Cl⁻

• EasyLyteLithium – Na⁺ / K⁺ / Li⁺

• EasyLyteCalcium – Na⁺ / K⁺ / Ca²⁺ / pH

• EasyLyteExpand – Na⁺ / K⁺ / Cl⁻ / Ca²⁺ or Li⁺

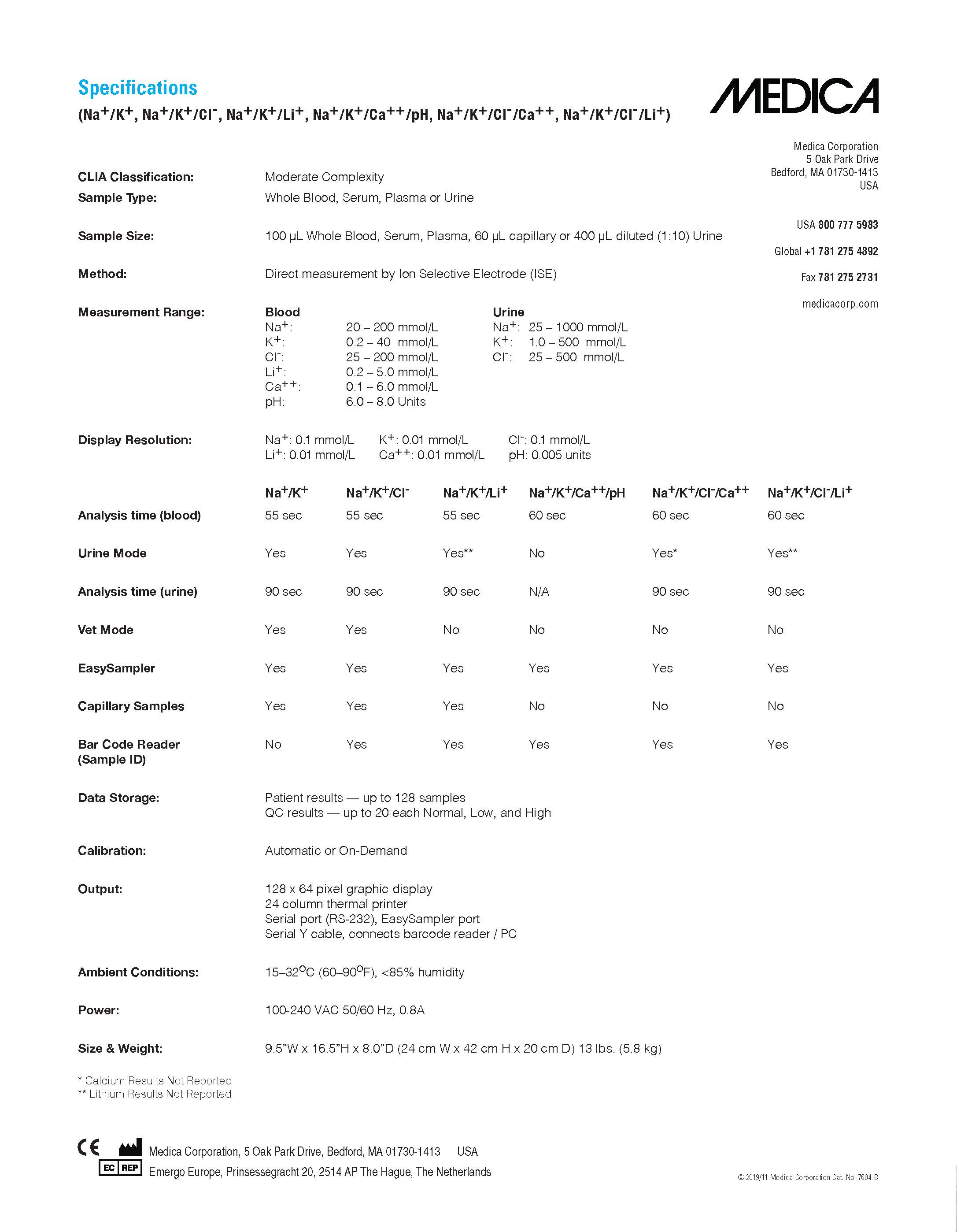

Specifications

• Sample Types: Whole blood, serum, plasma, urine (Calcium model: no urine mode)

• Sample Volume: 100 µL (blood), 60 µL (capillary), 400 µL (urine, diluted 1:10)

• Measurement Method: Ion Selective Electrode (ISE)

• Measurement Time: 55–60 sec (blood), 90 sec (urine)

• Measured Parameters:

  • Na⁺: 20–200 mmol/L (blood), 25–1000 mmol/L (urine)

  • K⁺: 0.2–40 mmol/L (blood), 1.0–500 mmol/L (urine)

  • Cl⁻: 25–200 mmol/L (blood), 25–500 mmol/L (urine)

  • Li⁺: 0.2–5.0 mmol/L (blood only)

  • Ca²⁺: 0.1–6.0 mmol/L (blood only)

  • pH: 6.0–8.0 units

• Data Storage: 128 patient results, 20 QC per level

• Interface: Graphic display, built-in printer, RS-232 output

• Power: 100–240 VAC, 50/60 Hz

• Dimensions: 24 × 42 × 20 cm

• Weight: 5.8 kg
