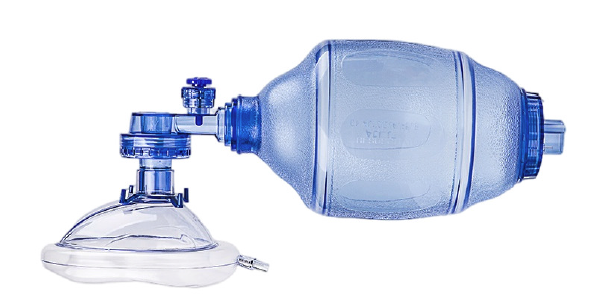

Manual PVC Resuscitators – CP

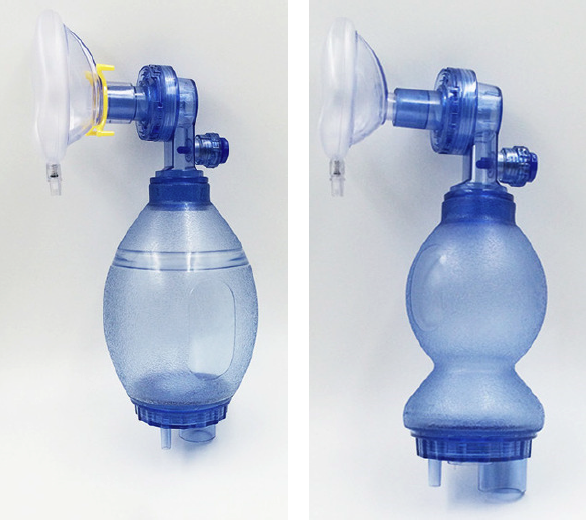

A range of manual PVC resuscitators available in Infant, Paediatric, and Adult sizes, designed for resuscitation. Each resuscitator is equipped with an oxygen reservoir bag and oxygen tubing.

Specifications:

Specification	Infant	Paediatric	Adult
Masks	#1	#2	#5
Body Weight	$\le$10kg	10kg – 30kg	>40kg
Stroke Volume	$\ge$20ml	$\ge$150ml	$\ge$600ml
Resuscitator Volume	280ml $\pm$100ml	550ml $\pm$200ml	1500ml $\pm$200ml
Dimensions (length x Diameter)	135mm x 75mm	146mm x 100mm	212mm x 131mm
Pressure Limiting Valve	30cmH20-45cmH20	35cmH20-50cmH20	40cmH20-60cmH20
Dead Space (patient valve)	$\le$7ml	$\le$20ml	$\le$65ml
Inspiratory Resistance	$\le$5cmH20 (at 50l/min)	$\le$5cmH20 (at 50l/min)	$\le$5cmH20 (at 50l/min)
Expiratory Resistance	$\le$5cmH20 (at 50l/min)	$\le$5cmH20 (at 50l/min)	$\le$5cmH20 (at 50l/min)
Bag Reservoir Volume	1600ml	1600ml	2000ml
Patient connector	ISO5356-1: Ǿ22/15mm	ISO5356-1: Ǿ22/15mm	ISO5356-1: Ǿ22/15mm
Recommended Operating Condition	-18⁰C ~ +50⁰C, 15%r.h ~95%r.h	-18⁰C ~ +50⁰C, 15%r.h ~95%r.h	-18⁰C ~ +50⁰C, 15%r.h ~95%r.h
Storage	-40⁰C ~ +60⁰C, 40%r.h ~ 95% r.h	-40⁰C ~ +60⁰C, 40%r.h ~ 95% r.h	-40⁰C ~ +60⁰C, 40%r.h ~ 95% r.h
Supplementary Oxygen & delivered Oxygen Concentration ($\ge$85%)	Vt: 60ml, Frequency: 20BPM, Flow Rate: 15l/min	Vt: 150ml, Frequency: 25BPM, Flow Rate: 15l/min	Vt: 600ml, Frequency: 12BPM, Flow Rate: 15l/min
