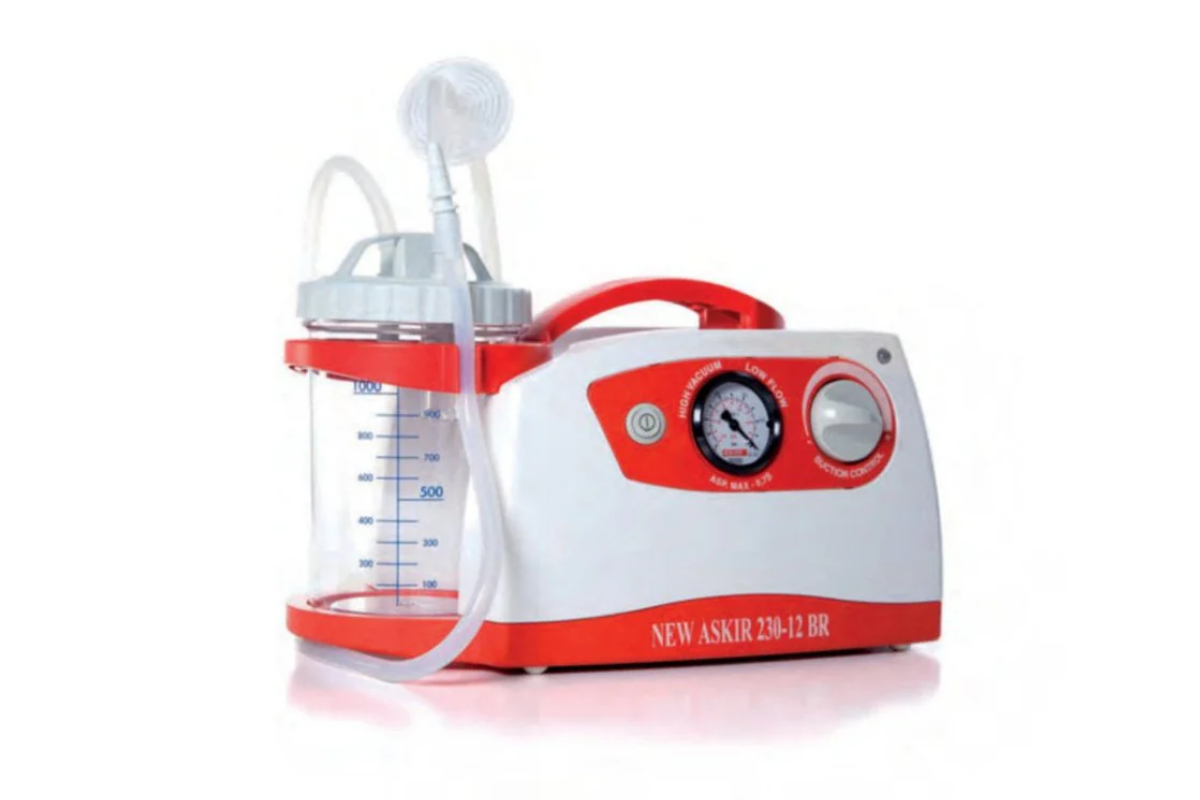

NEW ASKIR 230/12V BR Portable Surgical Suction Unit

NEW ASKIR 230/12V BR is an electric suction unit for the aspiration of body liquids, oral, nasal and tracheal aspiration in adults or children. Suitable for emergency applications and for post-operative therapy in home-care. Three different options for operation: AC/DC adapter, rechargeable battery and 12V makes it a versatile suction unit approved for NON-STOP operation without overheating. Provided with visual and acoustic alarm indicating low battery level, the main unit is also equipped with vacuum-meter (bar & kPa) and vacuum regulator. Complies with EN 60601-1-11 “for use in the home healthcare environment” and carries IP21 degree of protection.

Accessories included:

• Liquid Collection Jar with overflow valve system (different options, see below)

• 6x10 Silicone Tubes (autoclavable) + Conical Connector ø 8-9-10mm

• Antibacterial & Hydrophobic Filter (single-patient) + CH20 Canula

• AC/DC Universal Adapter

• 12V Car Adapter

Options:

• Stand on Castors REF. 27730

• Carrying bag* REF. SP 0207

• *for Unit and Consumables

Technical Features:

• Motor: Oil-less and maintenance-free piston pump

• Power Feeding:

  • 14V 4A with AC/DC Universal Adapter mod. UE60-140429SPA3 (100-240V~ - 50/60Hz – 100VA)

  • Internal Rechargeable Pb Battery (12V 4A) - Autonomy 80min - Recharging Time 240min

  • Car Adapter (12V 1.9A)

• ISO 10079-1 Classification: HIGH VACUUM / LOW FLOW

• Max Vacuum (adjustable): -0.75 Bar (-75 kPa, -563 mmHg)

• Max free air flow rate: 16 l/min

• Noise Level: 63.0 dBA

• Duty cycle: Non-stop operation (by mains only)

• Weight: 3.50 Kg

• Size: 35 x 21 x 18 cm

• Years of Warranty: 2

• Place of Manufacturing: Italy

Available Configurations:

• NEW ASKIR 230/12V BR with 1000ml autoclavable jar in policarbonate Makrolon 2858

• NEW ASKIR 230/12V BR with 2000ml autoclavable jar in policarbonate Makrolon 2858
